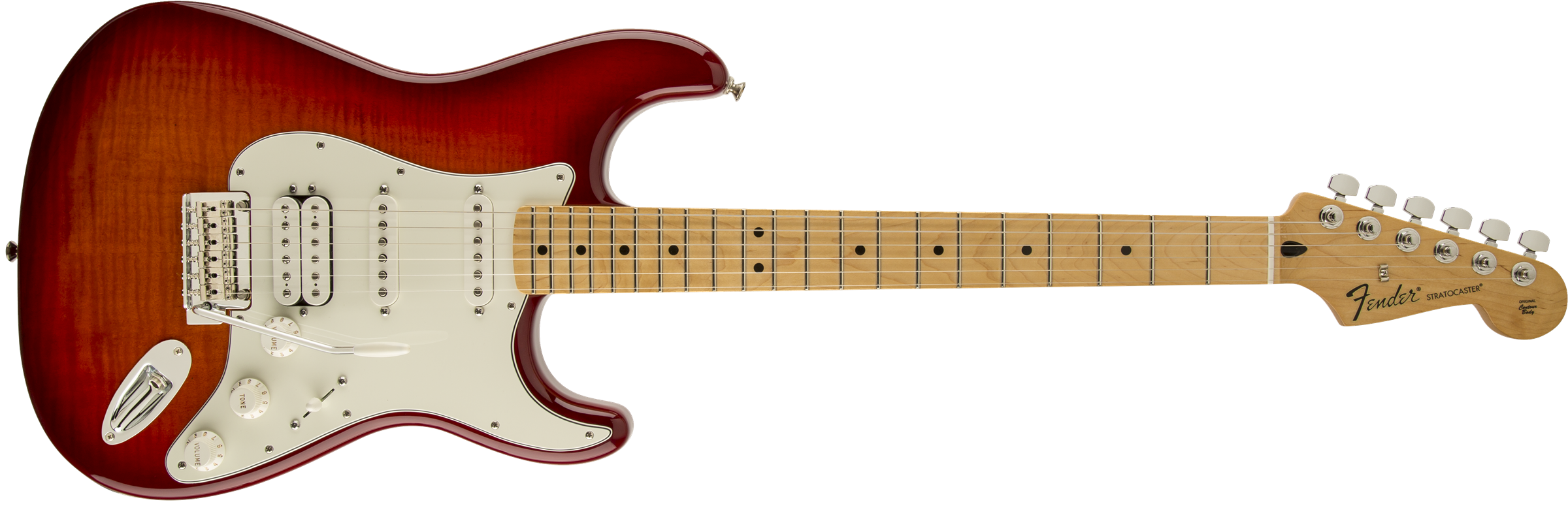

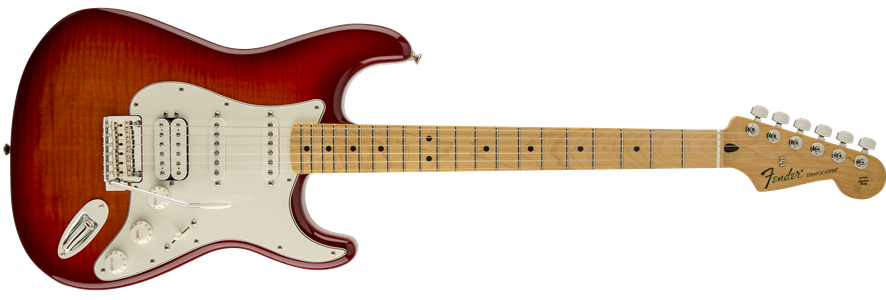

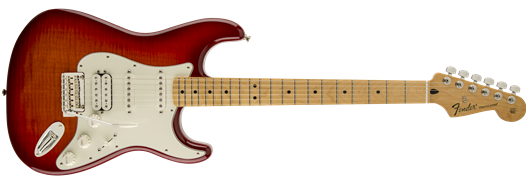

The Deluxe Stratocaster® HSS Plus Top guitar with IOS Connectivity lets you expand the sonic possibilities of the world’s greatest electric guitar by plugging it straight into iOS devices such as your iPhone®, iPad®, iPod® or computer—with no need for any external devices—for easy recording, editing, monitoring and more. Along with all its other great features, you get superior signal-to-noise ratio and remarkable dynamic range for an exciting and truly state-of-the-art playing experience.
The guitar’s built-in USB audio interface is what does the trick. You can always play it as a great-sounding standard HSS Stratocaster, but the USB output and 1/8” stereo headphone output on the side of the lower bout deliver a whole other world of sonic versatility and creativity. Use the included USB mini-B to Lighting™ cable to connect the guitar directly to your iPhone®, iPad® or iPod®, or use the included USB mini-B to USB Type A cable to connect directly to your Mac or PC (a custom USB mini-B to MFi 30-pin cable for connection to older iPhone®, iPad® and iPod® models is sold separately).

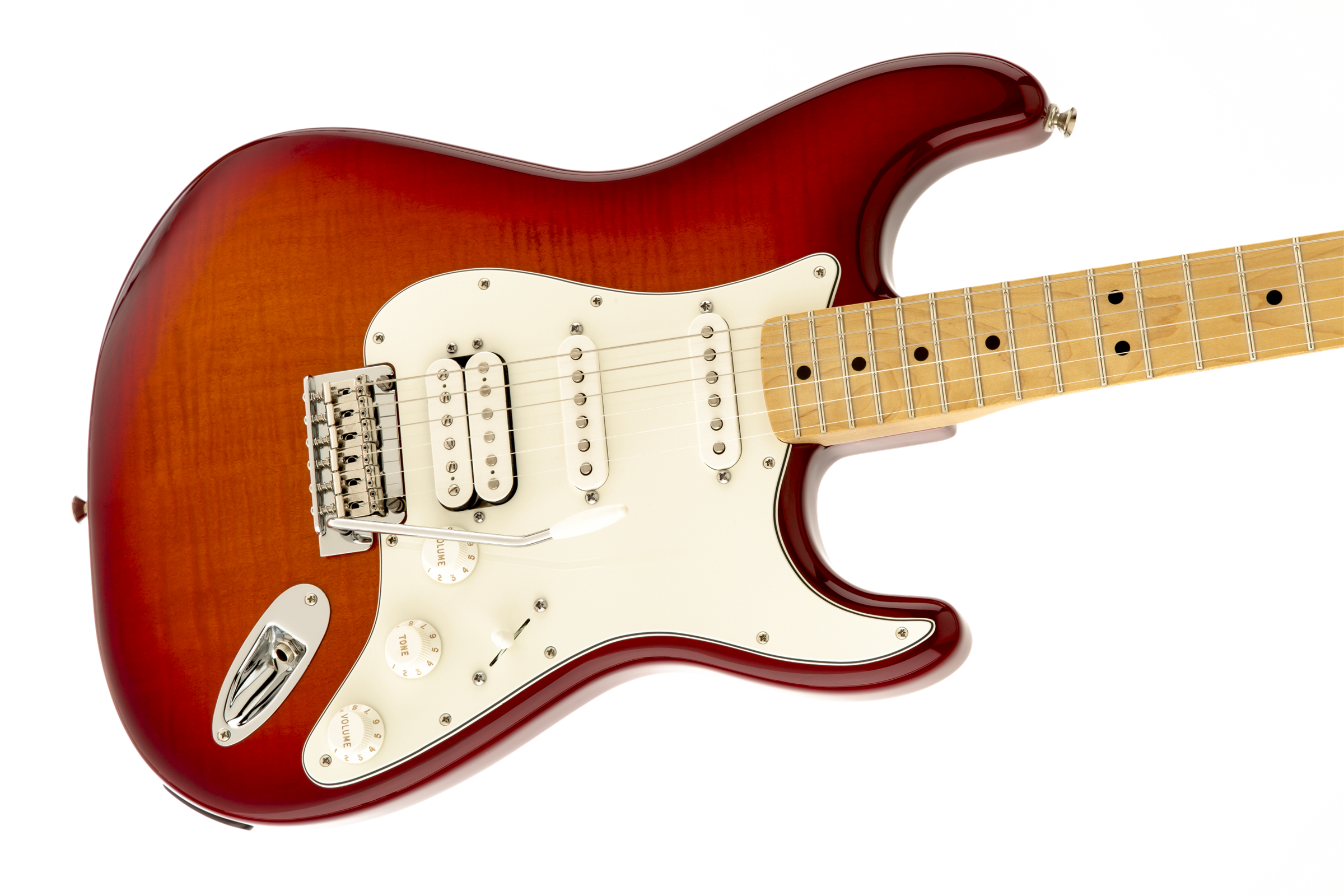

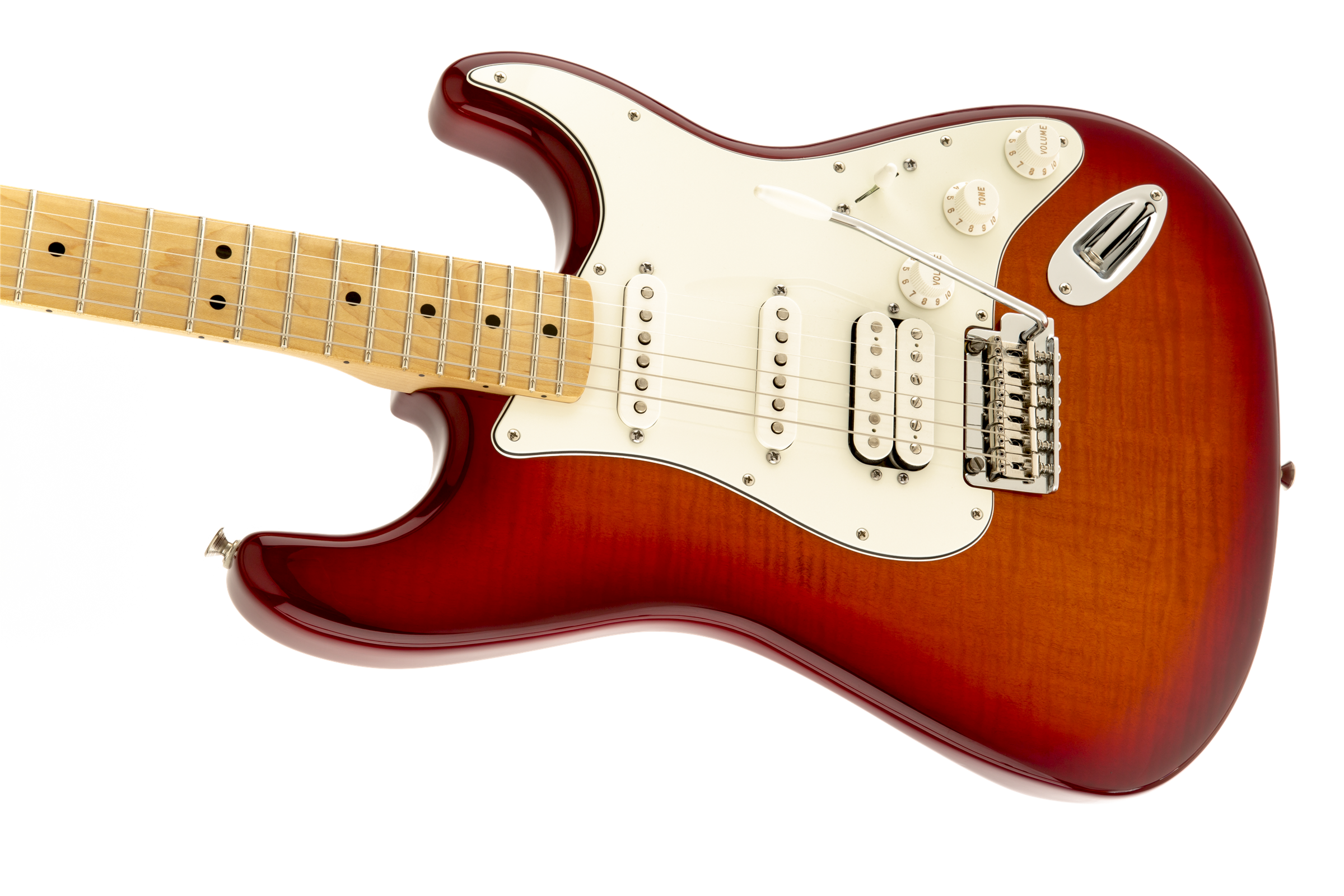

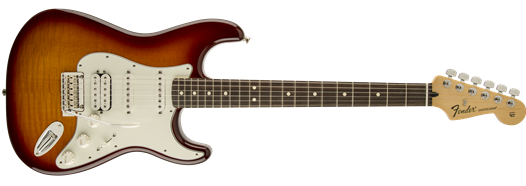

And to top it all off, it's a gorgeous guitar with a beautiful flame maple top in a choice of Aged Cherry Burst or Tobacco Sunburst gloss finishes. Other features include a maple neck with "modern C" profile and gloss finish, maple or rosewood fingerboard with 9.5" radius and 21 medium jumbo frets, single-coil neck and middle pickups, humbucking bridge pickup, five-way switching and three white plastic control knobs (master volume, master tone, headphone volume), three-ply parchment pickguard and two-point synchronized tremolo bridge with six saddles.
Please visit the following Fender Support links for more information:
Troubleshooting Guide
Updating Firmware
Licensed under one or both of U.S. Patent Nos. 7,241,948 and 7,563,977
| Model Name: | Deluxe Stratocaster® HSS Plus Top with iOS Connectivity, Maple Fingerboard, Aged Cherry Burst |
| Model Number: | 0144732331 |
| Series: | Deluxe |
| Color: | Aged Cherry Burst |
| Body Shape: | Stratocaster® |
| Body Material: | Alder with Flame Maple Top |
| Body Finish: | Gloss Polyester |
| Neck Material: | Maple |
| Neck Shape: | Modern "C" |
| Scale Length: | 25.5" (64.8 cm) |
| Fingerboard Radius: | 9.5" (241 mm) |
| Number of Frets: | 21 |
| Fret Size: | Medium Jumbo |
| String Nut: | Synthetic Bone |
| Nut Width: | 1.650" (42 mm) |
| Neck Plate: | 4-Bolt Standard |
| Neck Finish: | Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face |
| Fingerboard: | Maple |
| Position Inlays: | Black Dot |
| Bridge Pickup: | Standard Humbucking |
| Middle Pickup: | Standard Single-Coil Strat |
| Neck Pickup: | Standard Single-Coil Strat |
| Controls: | Master Volume, Master Tone, Headphone Volume |
| Pickup Switching: | 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup |
| Pickup Configuration: | HSS |
| Special Electronics: | USB Output, Stereo 1/8" Output |
| Bridge: | 2-Point Synchronized Tremolo with Vintage-Style Stamped Steel Saddles |
| Tuning Machines: | Standard Cast/Sealed |
| Orientation: | Right-Hand |
| Pickguard: | 3-Ply Parchment |
| Control Knobs: | White Plastic |
| Strings: | Fender® USA, NPS, (.009-.042 Gauges) |
