Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap, Certificate of Authenticity
Vintage Custom 1958 Jazzmaster®
Vintage Custom 1958 Jazzmaster®
Vintage Custom 1958 Jazzmaster®
Details
Summary
Overview

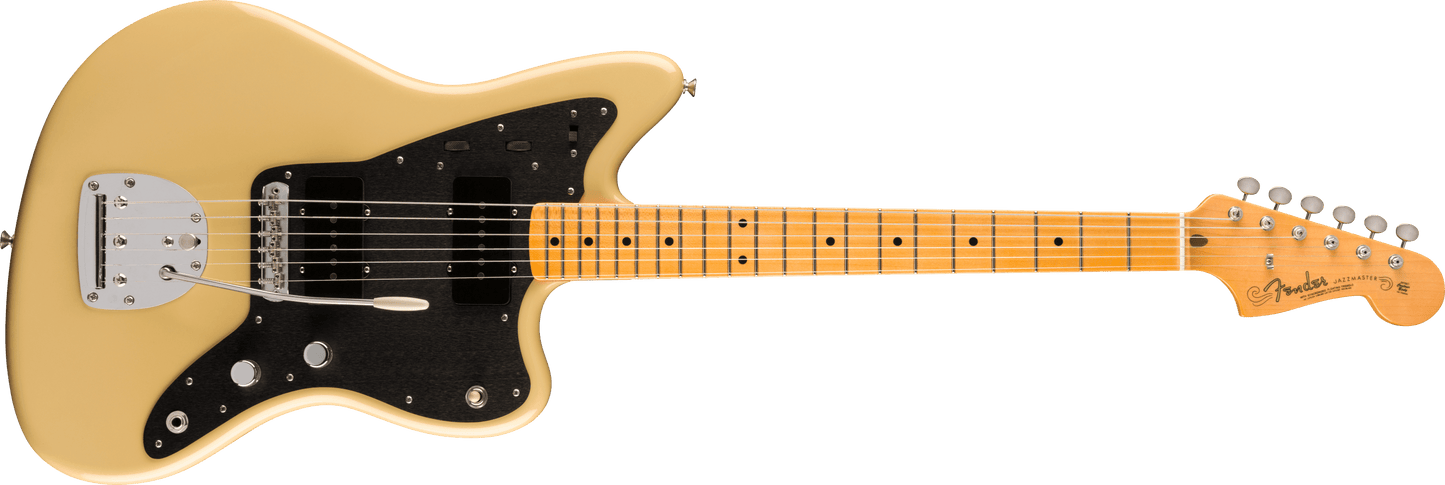

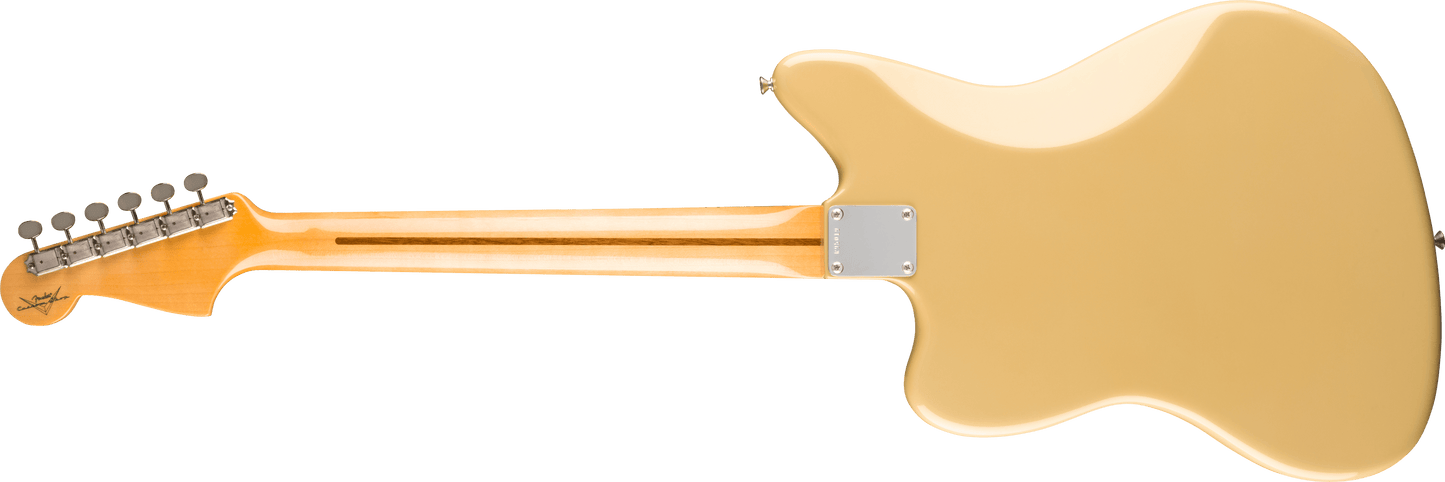

Originally released in 1958, the Jazzmaster underwent some striking changes between the development of the first prototypes and the final version that saw the light of day. The Vintage Custom 1958 Jazzmaster represents one of these earliest known prototypes, and offers some unique, rare features. The most obvious change is the tinted riftsawn maple Strat® neck, with a "Soft V"-shaped profile, sports a Jazzmaster decal on the Strat headstock. The two-piece select alder body wears a classic Custom Color Desert Sand NOS flash coat lacquer finish that, besides being period-accurate, will wear in a personal way while letting the wood breathe with more resonance. The 1-ply black anodized pickguard and vintage-style logo-less Jazzmaster bridge plate are also authentic appointments, offering a rare, cool glimpse into Fender history.
Other features include 21 medium-vintage frets, Hand-Wound Jazzmaster pickups, 3-position toggle switch, 2-position slide switch, vintage wiring, vintage-style tuning machines, bone nut and wing string tree. Includes deluxe hardshell case, strap and Certificate of Authenticity.
Accessories
Body
Body
Alder
Body Finish
Flash Coat Lacquer
Body Material
Alder
Body Shape
Jazzmaster®
Electronics
Bridge Pickup
Custom Shop Hand-Wound Jazzmaster®
Controls
Lead Circuit Controls (Slide Switch Down): Volume (Neck), Volume (Bridge), Master Tone; Rhythm Circuit Controls (Slide Switch Up): Two Thumbwheel Controls for Neck Pickup Volume and Tone
Neck Pickup
Custom Shop Hand-Wound Jazzmaster®
Pickup Configuration
SS
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
General
Color
Aged Desert Sand
Orientation
Right-Hand
Platform
Custom Shop Electrics
Product Name
2019 Vintage Custom 1958 Jazzmaster®, Maple Fingerboard, Aged Desert Sand
Series
Vintage Custom
Hardware
Bridge
Vintage-Style
Control Knobs
Knurled Flat-Top
Hardware Finish
Nickel/Chrome
Neck Plate
4-Bolt
Pickguard
1-Ply Black Anodized Aluminum
Strap Buttons
Vintage-Style
String Trees
American Vintage '59-'64
Strings
Nickel Plated Steel (.010-.046 Gauges)
Tuning Machines
Vintage-Style
Measurements
Fret Size
Medium Vintage
Headstock Thickness
.580" (14.7 mm)
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Headstock
Jazzmaster®
Neck Butt Width
2.200" (55.8 mm)
Neck Construction
4-Bolt Standard
Neck Finish
Flash Coat Lacquer
Neck Material
Rift Sawn Maple
Neck Shape
1957 Soft "V"
Neck Thickness
1st fret .850" (21.6 mm), 12th fret .980" (24.9 mm)
Neck Thickness 12th Fret
.980" (24.9 mm)
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Bone
Truss Rod
Vintage-Style
